Synovial joints are the most common and most mobile joints in mammals. Their freely moveable characteristic means they enable mammals to make large movements and they also provide stability in the body.

Learn more about these movable joints to fully appreciate them.

Types of Synovial Joints

Ball and Socket Joints

Ball and socket joints allow people to move freely without any kind of slipping motion. They allow for stable movement and resemble saddle joints. Ball and socket joints allow you to bend in several different ways in a smooth motion without any pain or discomfort. These joints are very strong; a good example of a ball and socket synovial joint is the hip joint or femur acetabulum.

Condyloid Joints

Condyloid joints have an irregular surface at the point where the bones move past one another. In essence, the joint is very similar to the two bowls nested together. A good example of a condyloid joint is the radio-carpal joint in the wrist.

Gliding Joints

Gliding joints allow you to get a smooth movement in many different directions along a smooth surface such as a plane. It is similar to two plates sliding across one another. The carpal bones of the wrist are an excellent example of a gliding synovial joint.

Hinge Joints

Much as the name implies, hinge synovial joints are those joints that form between two bones. These joints allow for stable extension and flexion without any deviation or sliding movement. A good example of a hinge joint is the elbow joint that lies between the ulna and the humerus.

Pivot Joints

With a pivot joint, the action is more rotational in nature and provides movement without any type of gliding. The pivot joint allows for motions without displacement sideways and without bending. An example of a pivot joint is the joint between the first and second cervical vertebrae or the atlas-axis joint. This one allows for the most range of motion in the head while still allowing the head on the neck to remain stable.

Saddle Joints

Saddle joints have two bones that fit together similar to a rider in a saddle. They allow for a bending motion in many different directions without any sliding. An example of a saddle synovial joint is the carpal-metacarpal joint in the thumb.

General Characteristics of Synovial Joints

Ball and Socket Joints

  • Ball-shaped head of one bone articulates with a cup-shaped cavity of another
  • All planes and rotation
  • Examples include the shoulder and hip

Condyloid Joints

  • Oval-shaped condyle of one bone articulates with an elliptical cavity of another
  • Variety of movements, no rotation
  • Examples include the phalanges and metacarpals

Gliding Joints

  • Articulating surfaces slightly curved or flat
  • Twisting or sliding
  • Examples include sternum to clavicle, wrist, and ankle bones

Hinge Joints

  • The surface of one bone articulates with a concave surface of another
  • Flexion and extension
  • Examples include the elbow and phalanges

Pivot Joints

  • The cylindrical surface of one bone articulates with a ring of ligament and bone
  • Rotation around a central axis
  • Examples include the atlas, proximal articulation of radius and ulna, and the axis

Saddle Joints

  • A concave surface in one direction and convex in another
  • Back and forth, side to side
  • Examples include the trapezium, first metacarpal, and the thumb

Glossary of Terms Related to the Different Synovial Joints

Acromioclavicular Joint

This is the point where the clavicle joins with the acromion.

Ankle Joint

This joint is between the leg and the foot.

Arthrodial Joint

This is a type of gliding joint.

Ball-and-Socket Joint

A type of synovial joint. Here, the spheroidal or rounded surface of one bone (the ball) moves within a depression that is cup-shaped (the socket) on another bone. This allows for great freedom of movement as compared to other types of joints. The ball-and-socket joint is also called the spheroidal or poly-axial joint.

Bicondylar Joint

The bicondylar joint is a condylar joint that has a meniscus between the articular surfaces; an example would be the temporomandibular joint.

Cartilaginous Joint

This is a type of synarthrosis whereby the bones are united by cartilage, providing only a little flexible movement. There are two types of cartilaginous joints: the symphysis and the synchondrosis.

Composite Joint

This is a compound joint and a type of synovial joint in which more than two bones are involved.

Condylar Joint

Also known as a condyloid joint, this joint is one where an ovoid head of one bone moves in an elliptical cavity of another. In turn, this permits all movements except axial rotation. It is found at the wrist where the radius and carpal bones connect, as well as at the base of the index finger.

Diarthrodial Joint

This is a type of synovial joint.

Elbow Joint

This is a synovial joint located between the ulna, radius, and the humerus.

Ellipsoidal Joint

This is a type of condylar joint.

Facet Joints

These are the articulations of the vertebral column.

Fibrous Joint

The fibrous joint is a joint in which the union of bony elements is by continuous intervening fibrous tissue. This makes little motion possible. Also called the synarthrodial or immovable joint or the synarthrosis, there are three types of fibrous joints: the suture, the gomphosis, and the syndesmosis.

Flail Joint

A flail joint is unusually mobile and results when a joint resection is completed in order to relieve pain.

Glenohumeral Joint

This is a synovial joint that is formed by the glenoid cavity of the scapula and the head of the humerus. It is also called a humeral joint or a shoulder joint.

Gliding Joint

A gliding joint is a synovial joint where the opposed surfaces are flat or only slightly curved, allowing the bones to slide against one another in a simple but limited way. An example of a gliding joint is an intervertebral joint as well as many of the small bones located in the ankle and wrist. These joints are also called plane joints or arthrodial joints.

Hinge Joint

A hinge joint is a synovial joint that allows movement in only one plane, forward and backward. Some examples of this type of joint are the interphalangeal joints in the fingers and the elbow joint. The jaw is also considered to be a hinge joint, although it can move a little from side to side as well. Also called ginglymus joints, these joints can include the ankle and knee joints that allow some rotary movement.

Hip Joint

Hip joints are synovial joints that are formed at the head of the femur as well as the acetabulum of the hip.

Immovable Joint

This is a type of fibrous joint.

Knee Joint

The knee joint is the compound joint between the tibia, patella, and the femur.

Pivot Joint

The pivot joint is a synovial joint in which one bone pivots within a bony or an osseoligamentous ring. This allows for only rotary movements and an example is the joint located between the first and second cervical vertebrae; i.e., the axis and the atlas. The joint is also called a trochoid or rotary joint.

Plane Joint

This is a type of gliding joint.

Poly-Axial Joint

This is a ball-and-socket joint.

Rotary Joint

A rotary joint is also called a pivot joint.

Sacroiliac Joint

The sacroiliac is the joint in the lower back between the sacrum and ilium.

Saddle Joint

A saddle joint is a synovial joint whose movement resembles that of a rider on horseback; in other words, it is one that is able to shift in several directions at will. At the base of the thumb, there is a saddle joint, in part because it allows the thumb to be more flexible and complex than the other fingers although it is also more complicated to treat if it becomes injured.

Shoulder Joint

The shoulder joint is a humeral joint.

Simple Joint

A simple joint is a type of synovial joint in which only two bones are involved.

Spheroidal Joint

The spheroidal joint is a type of ball-and-socket joint.

Synarthrodial Joint

This is another type of fibrous joint.

Trochoid Joint

The trochoid joint is a pivot joint.

Parts of a Synovial Joint

Articular Cartilage

This cartilage is a connective tissue that is highly specialized and present in all diarthrodial joints. The main purpose of articular cartilage is to provide a smooth and lubricated surface for any articulation and for facilitation of load transmission with a low frictional coefficient. Devoid of blood vessels, nerves, and lymphatics, the articular cartilage is subject to a harsh biochemical environment. Even more significant, articular cartilage has limited ability for intrinsic repair and healing. Because of this, if you want excellent joint health, it is a must to preserve the health of your articular cartilage.

Articular cartilage is usually from two to four millimeters thick and consists of a dense material made up mostly of highly specialized cells known as chondrocytes. Divided into zones, articular cartilage is made up of a lot of water, collagen, and numerous other proteins.

A cross section of articular cartilage can be seen here.

Fibrous Joint Capsule

A fibrous joint capsule is a ligamentous sac surrounding the articular cavity of any freely moveable joint. It is attached to the bone and completely exposes the joint. A joint capsule is also composed of an inner synovial membrane and an outer fibrous membrane. They are also called articular capsules or capsular ligaments. In other words, the joint capsule has two parts and one of them is a fibrous membrane or fibrous joint capsule, that is considered the outer layer.

Fibrous joint capsules are demonstrated in many medical photographs, including this one.

Joint Cavity Filled with Synovial Fluid

All joints in the human body contain synovial fluid. Also called synovia, the fluid is very thick and lubricates the joint. This, in turn, allows for easier movement. In certain joint diseases, such as arthritis, the synovium of the joint is where inflammation usually occurs the most. Because of this, synovial fluid is how the causes of joint inflammation are usually diagnosed.

Synovial fluid is non-Newtonian and viscous, is egg white-like inconsistency, and has a major role in reducing friction between the articular cartilage of synovial joints whenever movement is taking place. For obvious reasons, synovial fluid is a very important part of a person’s life because, without it, you simply could not move with the freedom you have now.

More details and photographs of synovial fluid can be found at sites such as this.

Ligaments

A ligament is a fibrous band of connective tissue that is very tough and meant to support all the internal organs as well as hold all of the bones together in proper articulation at the joints. Ligaments are composed of dense fibrous bundles that consist of fibers filled with collagen and spindle-shaped cells that are called fibrocytes. Ligaments are usually listed as having two main types: the white ligament, which is rich in collagenous fibers and is inelastic and sturdy; and the yellow ligament, which is quite tough and has many elastic fibers. The latter, although very tough, also allows very elastic movement. At the joints themselves, the ligaments form a capsular sac that encloses articulating bone ends and the synovial membrane, which is a lubricating membrane.

Occasionally, the structure also consists of a recess, also called a pouch, that is lined by a synovial fluid called a bursa. Other ligaments can fasten across or around the bond ends in bands. This permits varying degrees of movement and acts as tie pieces between the bones, which restricts inappropriate movement. When it does this, it usually involves bones such as the ribs or those in the forearm.

Photographs of ligaments can be seen at sites such as this.

Synovial Membrane

Also called a synovium or a stratum synovial, the synovial membrane is a very specialized connective tissue lining the inner surface of the capsules found in synovial joints and tendon sheaths. The main function of the synovial membrane is that it makes synovial fluid, which is a lubricating material that the joints need in order to move freely.

A condition called toxic synovitis exists and is caused when inflammation occurs in the hip joint. Unfortunately, the cause of toxic synovitis is unknown but many specialists believe that it is due to some type of viral infection. Toxic synovitis usually affects only one hip, although it is possible for inflammation and swelling to spread to other joints.

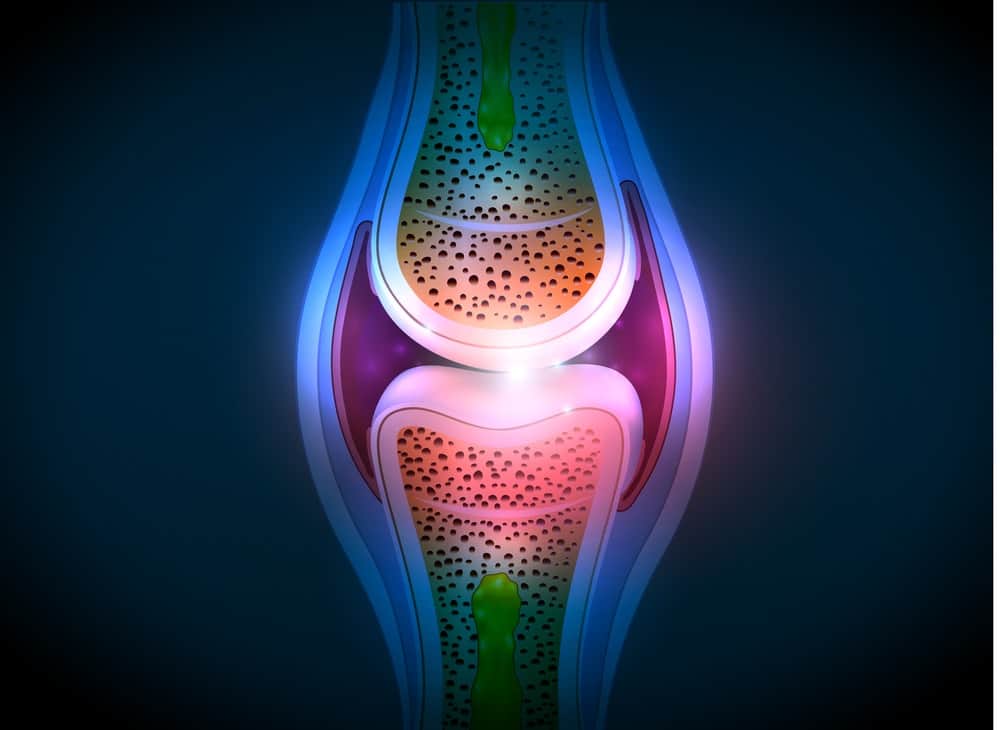

A detailed picture of a synovial joint can be found here.

More details on the skeletal system, which can help demonstrate the synovial joints, can be found here.





>
